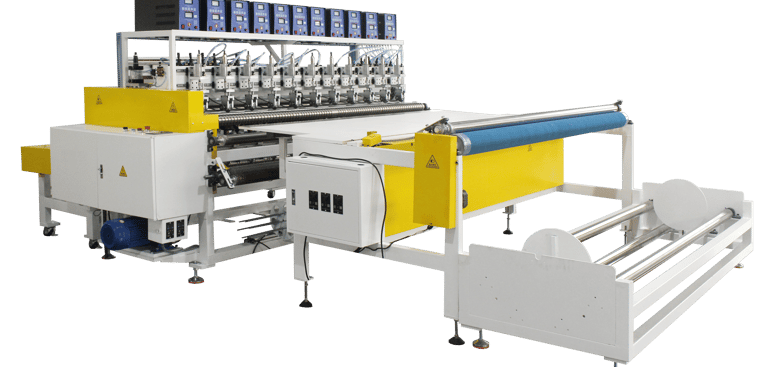

Automatic high speed slitter X-7H

The Automatic High-Speed Slitter is a specialized precision equipment designed for the pre-processing stage of towel manufacturing, focusing on efficiently and accurately cutting large-width fabric rolls into narrower, customized-width strips—ready for downstream towel sewing processes. What sets it apart is its adoption of ultrasonic technology blades , which delivers superior cutting performance compared to traditional mechanical blades, ensuring clean, fray-free edges and consistent fabric quality—critical for enhancing the efficiency and finished product standard of subsequent towel sewing operations.

• Capacity: 1–35 Meters per Minute​

With an adjustable production speed ranging from 1 to 35 meters per minute, the slitter can flexibly adapt to different production rhythms and fabric types (e.g., thinner non-woven towel fabrics or thicker terry cloth). This wide speed range makes it suitable for both small-batch customized cutting tasks and large-scale mass production, effectively matching the output demands of downstream towel sewing lines and avoiding production bottlenecks.​

• Slitting Width: 200–2500 mm​

The slitter supports a broad slitting width range from 200 mm to 2500 mm, allowing it to cut fabric rolls into strips of various widths tailored to different towel products. Whether producing narrow hand towel blanks (around 200–300 mm) or wide bath towel fabrics (up to 2500 mm), it can meet the diverse width requirements of downstream sewing processes, eliminating the need for multiple slitting devices and reducing equipment investment.

Key Advantages Driven by Ultrasonic Technology

1.Superior Cutting Quality: The ultrasonic technology blade generates high-frequency vibrations to cut fabrics, creating clean, smooth edges without fraying, burring, or thermal deformation (even for heat-sensitive materials like microfiber towel fabrics). This eliminates the need for post-cutting edge trimming, directly improving the efficiency of downstream towel sewing and ensuring neat, durable seams in finished towels.​

2. High Precision & Consistency: Equipped with a precision guide system and photoelectric alignment sensors, the slitter ensures that the cutting width remains accurate within a small tolerance (typically ±1 mm). This consistency is vital for downstream towel sewing, as it guarantees that fabric strips are uniform in width—avoiding uneven sewing, material waste, or defective towel products.​

3. Durable Blade Performance: Unlike traditional mechanical blades that require frequent sharpening or replacement due to wear, ultrasonic blades have minimal contact friction with fabrics, resulting in a much longer service life. This reduces maintenance costs and downtime associated with blade upkeep, lowering the overall operational cost for towel manufacturers.​

4. Fully Automatic Operation: The slitter integrates automatic fabric unwinding, tension control, slitting, and rewinding (optional) functions. The PLC control system and touchscreen interface allow operators to easily set parameters (speed, slitting width) and monitor production status in real time. No manual intervention is needed during continuous operation, reducing labor intensity and human error
